Products Description

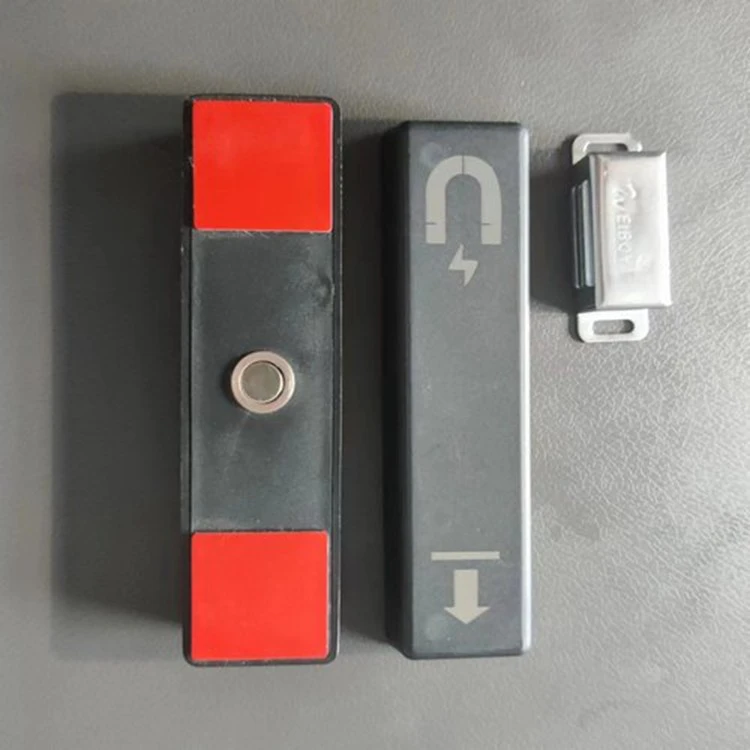

RFID Door Alarm Tag is a high-performance security tag. Standard tags come in pairs and are specifically designed to detect the open and closed status of doors. It is widely used in access control, warehouse management, computer room security, and other scenarios. The tag measures 110*30*15mm (with an internal copper antenna measuring 85*18mm). It features a rugged PC casing, a built-in CAB1/VBL7 chip, and supports the ISO18000-6C GEN2 V2 protocol. It provides 112-bit TID/UID, 192-bit EPC, and 512-bit user storage to meet various data encoding requirements.
This RFID door alarm tag supports 920.5-924.5MHz operating frequencies and has a read range of up to 7 meters on metal surfaces (depending on reader performance). It is resistant to metal interference and supports both low and high temperature environments. Built-in temperature and detection sensors ensure stable performance in complex environments. Flexible mounting options include adhesive or magnetic mounting, making it suitable for quick deployment.
RFID Door Alarm Tags also offer a wide range of customization options, including monochrome/color barcode and text printing, laser engraving, personalized encoding, and data writing. We support ODM/OEM/SKD models, provide free consultation and sample testing, and can quickly produce proofs within 2-3 days, helping customers efficiently build access control and security solutions.
Specifications
| Tag Dimension | 110 × 30 × 15 mm (Copper Antenna Size: 85 × 18 mm) |
| Chip | CAB1 / VBL7 |
| Protocol | ISO18000-6C GEN2 V2 |
| Memory | TID/UID 112bit + EPC/Block 192bit + User File_0 with 512bit + Reserve 112bit |
| Operating Frequency | 920.5 – 924.5 MHz |
| FaceStock / Housing | PC Housing |
| Reading Range | Up to 700 cm on metal (depends on reader) |
| Installation | Adhesive & Magnetic Install |
| Characteristic | On-metal Use, Low Temperature Resist, High Temperature Resist, Temperature Sensor, Detection Sensor |
| Feature Option | Free consulting and samples; 2-3 days fast sampling; Support for ODM/OEM/SKD; Customized printing (mono/color barcode, text, embossing, laser-engraving, personalization, encoding service) |
product application
Power and Energy Facilities: Widely used in distribution cabinets, substations, power equipment rooms, and new energy facilities, enabling remote monitoring of equipment cabinet doors, reducing the frequency of manual inspections, and improving operation and maintenance efficiency.
Cold Chain Warehousing Management: Used for monitoring the opening and closing status of warehouse doors and logistics channels. Combined with a UHF RFID system, it achieves automatic identification of door status and temperature, improving warehouse management efficiency.
Logistics Distribution Centers: Installed at loading and unloading platforms, distribution center entrances and exits, etc., it records the opening and closing status of doors in real time, providing reliable data support for the logistics and transportation process.
Data Center Server Rooms: Can be deployed in server rooms, communication cabinets, and IT equipment rooms to remotely monitor access control status, helping managers to promptly detect abnormal door opening events and ensure the safety of critical equipment.
frequently ask question
Q: Can the tag be installed on metal doors?
A: Yes. It is designed for on-metal applications and provides stable performance on metal surfaces.
Q: How is the tag installed?
A: The tag supports both adhesive and magnetic installation for fast deployment and easy maintenance.
Q: Can it work with existing UHF RFID systems?
A: Yes. It complies with ISO18000-6C GEN2 V2 and is compatible with standard UHF RFID readers.
