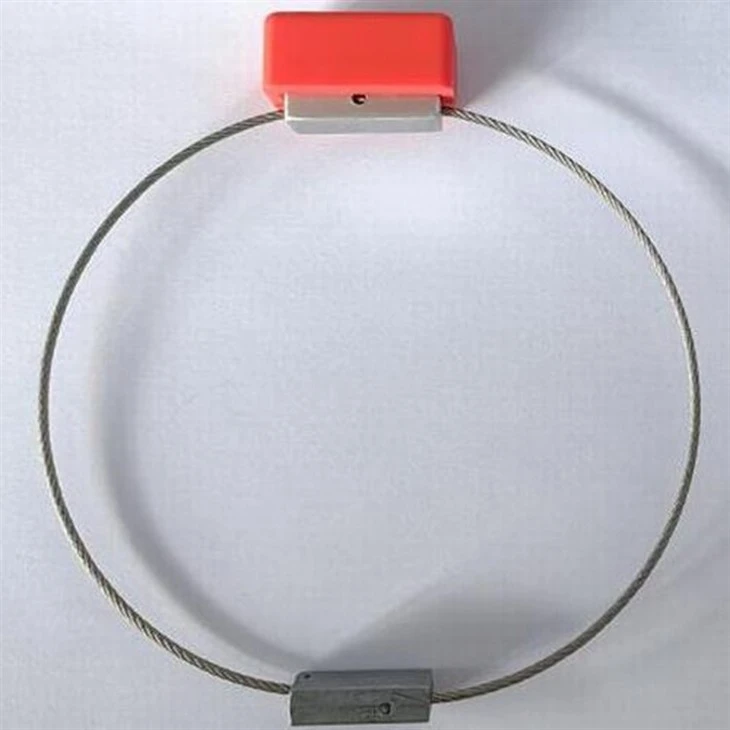

Temperature Loggers RFID Tag

With a read range of at least 7 meters, this tag is suitable for temperature management in large-scale warehousing and cold chain environments.
An integrated temperature sensor records and monitors ambient temperature in real time, meeting various temperature monitoring applications.
The tag exhibits excellent metal interference resistance and is stable on metal surfaces.
The silicone casing is waterproof, dustproof, and weather-resistant, making it suitable for long-term outdoor use and cold chain environments.
Equipped with an EPC, UID/TID, and a 512-bit user area, it can store extensive temperature and traceability data.

Send Inquiry

Download

Description

Products Description

Temperature Loggers RFID Tag is an ultra-high frequency (UHF) temperature logger designed for temperature monitoring and intelligent data management. Measuring 29.2*17.2*16.6mm, it features a CAB1/VBL7 chip and complies with the ISO18000-6C GEN2 V2 protocol, ensuring high compatibility with RFID systems. The tag boasts large-capacity storage, including a 112-bit TID/UID, a 192-bit EPC, a 512-bit user area, and a 112-bit reserved area, enabling temperature data collection, device identification, and traceability.

RFID temperature logger operates at a frequency of 920.5–924.5MHz and, when compatible with a reader, has a read range of up to 700cm, significantly improving remote reading and temperature monitoring efficiency. Its silicone housing is waterproof, dustproof, and weather-resistant, and can be used on metal surfaces, making it suitable for complex environments and outdoor applications. Temperature Loggers RFID Tags are widely used in cold chain logistics, pharmaceutical transportation, food safety, warehouse management, power facilities, and industrial production, making them an ideal choice for businesses seeking to manage temperature.

Specifications

Tag Dimension	29.2 x 17.2 x 16.6 mm
Chip	CAB1 / VBL7
Protocol	ISO18000-6C GEN2 V2
Memory	TID/UID 112bit + EPC/Block 192bit + User File_0 with 512bit of data + Reserve 112bit
Operating Frequency	920.5 – 924.5 MHz
FaceStock / Housing	Silicon Housing
Reading Range	Up to 700cm (depends on reader)
Installation	Tie up
Characteristic	On Metal Use / Temperature Sensor

application areas

Transformer Temperature Monitoring: RFID tags can collect transformer operating temperature data and enable remote monitoring via RFID wireless transmission, helping operations and maintenance personnel promptly detect abnormal temperature rises and prevent equipment damage and power outages.

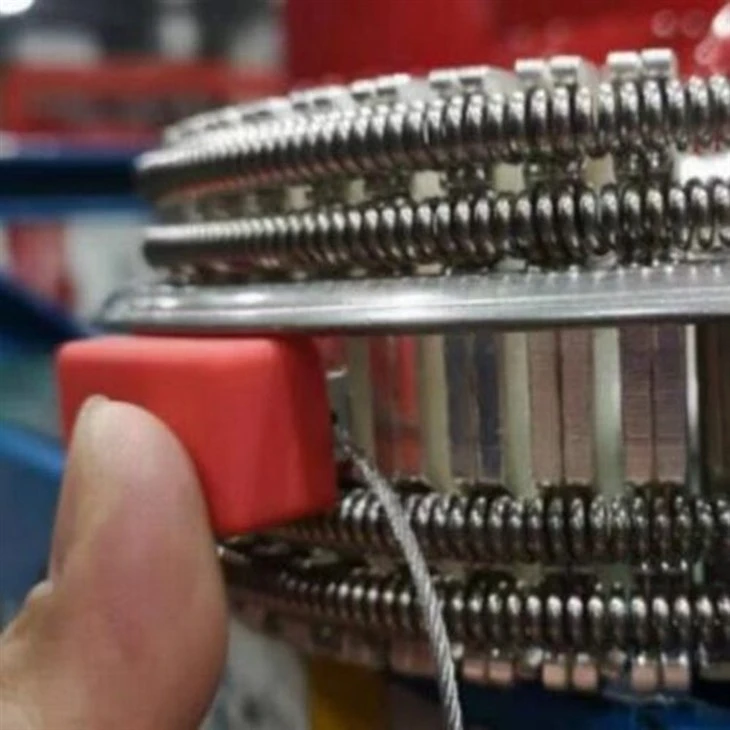

Busbar Temperature Management: Busbars can easily overheat due to poor contact under high load. Deploying UHF Temperature Sensor Tags allows real-time temperature monitoring of key locations and, combined with a reader/writer, provides over-temperature alarms.
Cable Joint Monitoring: Cable joints can overheat and age due to long-term use or environmental influences. Using RFID temperature sensor tags for continuous monitoring enables accurate temperature measurement of cable joints, assisting power companies with maintenance and extending equipment life.
