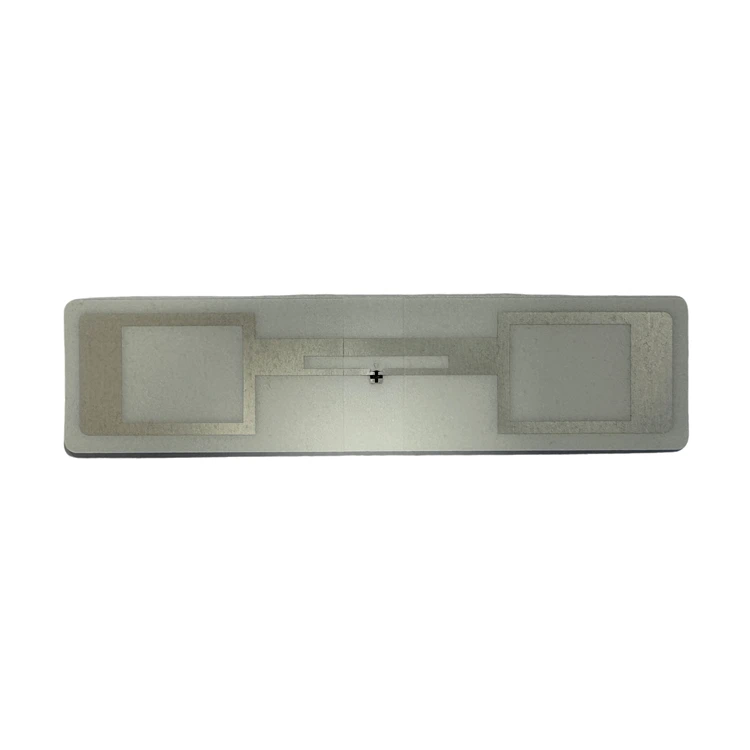

RFID UHF Temperature Tag

RFID UHF Temperature Tag

Ultra-long reading distance of up to six meters(depend on reader).
Contactless reading is convenient and fast, which improves work efficiency.
Data is stored in the chip, which is convenient for tracing historical data.
Tag parameters can be customized according to different needs.
Send Inquiry
Description
Product Description

RFID UHF Temperature Tag is a smart tag that integrates radio frequency identification (RFID) technology and temperature sensing function, mainly used for long-distance non-contact temperature monitoring and data tracking. The tag works in the ultra-high frequency (UHF) band (usually 860-960MHz), can be wirelessly read within a range of several meters or even more than ten meters, and record and transmit temperature data at the same time.



Technical Specs

Tag Dimension

98*24*0.42mm

Chip

CAB1/VBL7 ( Protocol: ISO18000-6C GEN2 V2)

Memory

TID/UID 112bit+ EPC/Block 192bit+ User File_0 with 512bit of data+ Reserve 112bit

Operating Frequency

902-928Mhz

FaceStock/Housing

White Printable PP

Reading Range

600cm on Air-Free (depends on reader)

Installation

Adhesive

Characteristic

Temperature Sensor



ROI Benefits

Save Labor Time in Temperature Inspection

Manual temperature checking requires workers to access each location, read the temperature, and record results.

By using UHF RFID temperature tags: Inspection time can typically be reduced by 30–60%, large warehouses can save several hours of manual checking work per day, depending on the number of monitoring points


Improve Warehouse Operation Efficiency

With a reading range of up to 6 meters, operators can collect temperature data faster without checking each item individually.

In batch inspection scenarios, RFID scanning can improve checking efficiency by approximately 2–5 times compared with manual inspection.


Reduce Temperature-Related Product Loss

Continuous temperature monitoring helps detect abnormal conditions earlier.

For industries such as pharmaceuticals, food, and fresh products, a single temperature failure can result in product disposal costs ranging from hundreds to thousands of dollars


Reduce Data Management Workload

Automatic RFID data collection reduces manual entry and paperwork.

Companies can save approximately 50%+ time in temperature record preparation, reporting, and traceability checks.



FAQ

Q:Does this tag require a battery?

A: No. It is a passive RFID temperature tag and does not require a built-in battery. The tag is activated when communicating with an RFID reader.

Q: Can it be used for cold chain transportation?

A: Yes. It is suitable for temperature monitoring in cold chain logistics, food transportation, pharmaceutical storage, and other temperature-sensitive applications.

Q: What is the difference between this tag and NFC temperature tags?

A: NFC temperature tags usually require close-range reading within centimeters.
UHF RFID temperature tags support several-meter reading distances, making them more suitable for warehouse and logistics applications.

Q: Can it work with existing UHF RFID readers?

A: Yes. It supports the ISO18000-6C GEN2 V2 protocol and can work with standard UHF RFID readers.

Q: Is the tag reusable?

A: The tag lifecycle depends on the application environment and monitoring requirements. For fixed asset monitoring, customers can evaluate reuse based on adhesive condition and deployment conditions.
