Overview

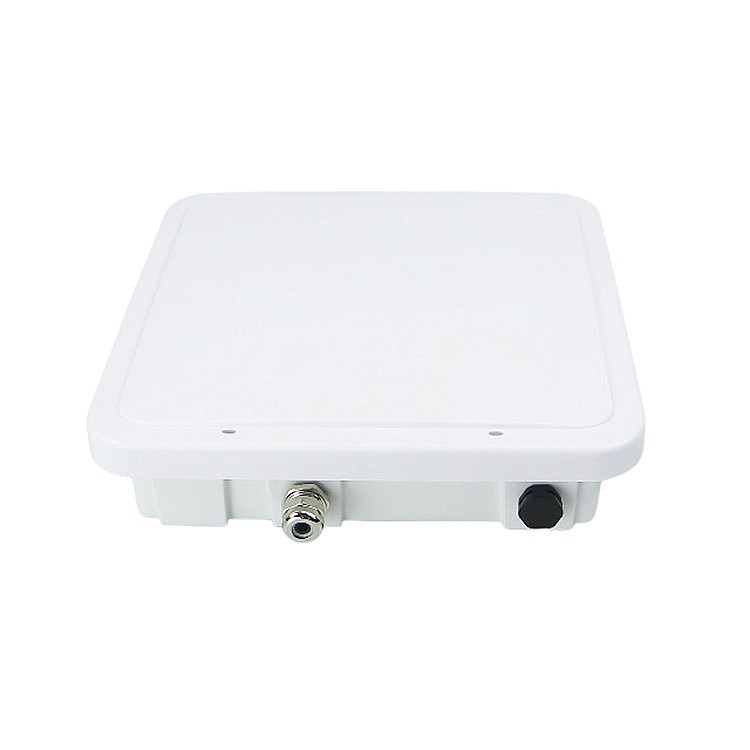

Outdoor RFID antenna is designed to withstand the rigors of outdoor environments while providing reliable RFID reading capabilities. With an IP65 waterproof rating, they are suitable for use in all weather conditions. They also feature a rugged construction that can withstand elements such as dust, moisture, and temperature fluctuations, ensuring consistent performance in outdoor environments. They are used in applications such as outdoor shopping areas, dock access, and around shelf areas to create a good read zone.
Specification
| Antenna Size | 228*228*68mm |
| Net Weight | 1.55kg |
| Frequency Range | 902-928MHz |
| Gain | ＞8dBi |
| 3dB Half Power Angle | Hor:65°/ Ver:65° |
| Standing Poppy | ≤1.3 |
| Characteristic Impedance | 50Ω |
| Polarization Mode | Circular polarization |
| Axis Ratio | ≤3 |
Product Advantage
Expand monitoring range: RFID outdoor antennas can achieve signal reading over a long distance. For example, in logistics parks, antennas can read RFID tag information of goods on transport vehicles at a long distance.
Resist bad weather: The outdoor environment is complex and changeable. RFID outdoor antennas have good waterproof, dustproof and windproof properties, and can work stably under bad weather conditions such as rain, snow, wind and sand.
Reduce manual intervention: Tag information can be read without contact with the identified object, which has obvious advantages in the identification and management of large quantities of goods and equipment outdoors, and can achieve rapid information collection.
Improve work efficiency: It can simultaneously identify multiple RFID tags within its reading range, and realize rapid inventory and management of bulk goods, groups of animals, etc.
Application
Inventory management: For large outdoor logistics warehouses or open-air yards, RFID outdoor antennas help to achieve efficient inventory counting. Staff do not need to manually scan each piece of goods, and the antenna can automatically read the cargo label information.
Vehicle toll management: RFID outdoor antennas are widely used at the entrances and exits of highway toll stations and some closed parking lots, which can quickly identify the identity of vehicles and realize non-stop toll collection (ETC) or automatic entry and exit management.
Public transportation management: In the public transportation system, outdoor antennas can be installed at bus stops or on the vehicle itself. The antenna can read the information of vehicles about to enter the station, realizing fast and convenient ride charging.
