Products Description

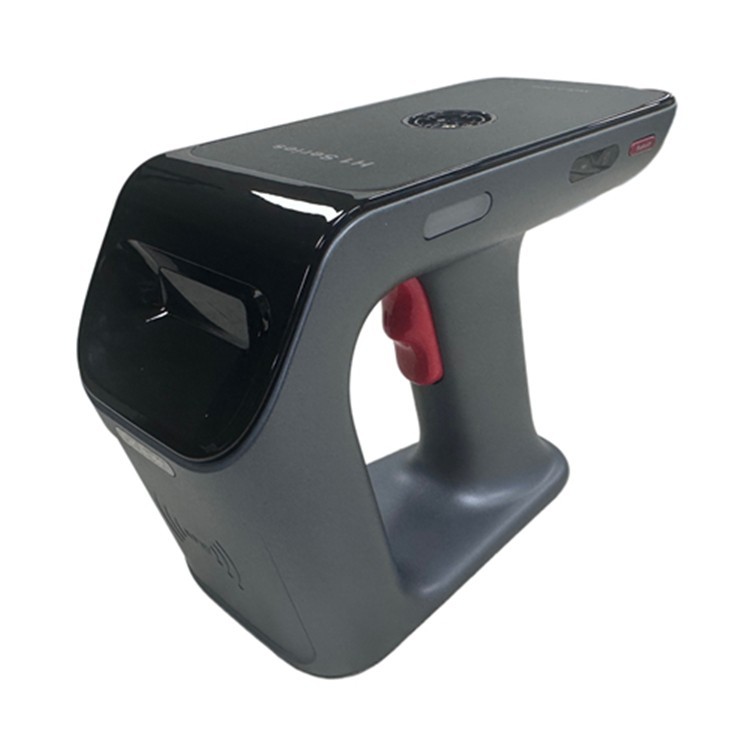

BLE RFID Reader is a high-performance UHF Bluetooth reader/writer developed for system integrators. It utilizes the third-generation X3M1 chip, supports EPCglobal Class 1 Gen 2 and ISO/IEC 18000-6C protocols, and can be quickly integrated into RFID systems for warehouse management, asset tracking, and smart manufacturing. Equipped with a 3.5dBi circularly polarized antenna, the BLE RFID Reader boasts a reading distance of up to 10 meters and a multi-tag identification speed exceeding 500 tags per second, maintaining stable data acquisition capabilities even in high-density tag environments.
RFID Reader features dual interfaces: Bluetooth Low Energy 5.0 and USB 2.0, allowing for flexible connection to mobile terminals and industrial equipment, facilitating multi-platform development and deployment for system integrators. A built-in 4500mAh replaceable standard battery supports extended continuous operation. It is compatible with multi-band configurations in China, the Americas, Europe, and Japan, meeting the needs of projects in different regions. Its lightweight design, coupled with clear LED status indicators, ensures portability, stability, and ease of operation in practical applications.
Product Parameters
| Overall Size | 174.6 mm × 80.5 mm × 135 mm |
| Overall Weight | <750 g (depending on device configuration) |
| Battery Capacity | 4500mAh 21700 standard battery pack, user-replaceable |
| Chip | Third-generation X3M1 chip |
| Operating Frequency | 920–925MHz (China), 902–928MHz (America), 865–868MHz (Europe), 916–920MHz (Japan) |
| Protocol Standards | EPC C1 GEN2 / ISO18000-6C |
| Antenna | 3.5dBi Circular Polarized Antenna |
| Reading Distance | Up to 10 meters |
| Multi-tag Reading Speed | >500 tags/second |
| Communication | BLE 5.0 Bluetooth, USB 2.0 HID Plug-and-Play |
| LED Indicators | Battery level, Bluetooth status, RFID reading status, Barcode scanning status |
| Side Buttons | Bluetooth switch button, Power button |
frequently ask question
Q: What are the main application scenarios for this BLE RFID Reader?
A: It is primarily suitable for RFID data collection scenarios such as warehouse management, asset tracking, manufacturing, logistics sorting, and retail inventory management.
Q: What shipping methods does this BLE RFID Reader support?
A: We support multiple international logistics methods, including DHL, FedEx, UPS, as well as air and sea freight services. Customers can choose the appropriate shipping solution based on order quantity, delivery time, and destination.
Q: Does this BLE RFID Reader support frequency band requirements in different countries?
A: It supports multiple frequency band configurations in China, the Americas, Europe, and Japan, meeting the deployment needs of RFID projects in different countries and regions, and is suitable for global integration projects.
Q: Is an SDK provided for system development?
A: An SDK and technical interface documentation are provided to facilitate software development by system integrators and facilitate rapid integration into existing business systems.
